Private 5G

· Private 5G is a private network that enables services to be implemented at a high level of stability and security in mission-critical that demand companies want in specific spaces(buildings, facilities, places, etc.) through dedicated frequencies.

· It is possible to build systems in various industries such as smart factories, architecture, and public facilities through Private 5G networks, and to implement customized specific services such as speed control, security policies, and scalability.
· End-to-end private networks make it easy to manage and operate enterprise sensitive data or information.
· Integrate software and hardware from private 5G global solution providers to create a complete communications network for private 5G networks.

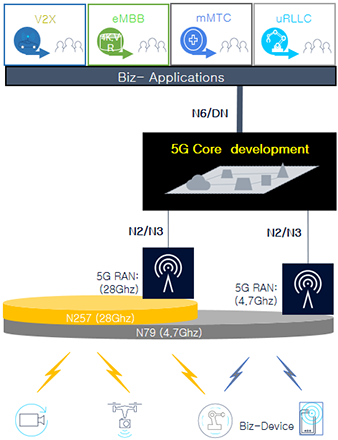

Private 5G Solution(1/2) - Nokia

Biz-Application

· Utilizing the 5G network as a Business Application, to automate existing business processes through communication with Business devices (e.g., AGV control, Video Analytics, Robot control, etc.).
· Securing solutions through the relevant industry ecosystem (solution partners, etc.) or through self-development by the enterprise customer itself.

CORE

EMS (NOM/NSP)

· As a 5G SA Core solution, it provides essential Network Functions such as AMF, SMF, UPF, AUSF, UDM, enabling authentication/authorization, session control, mobility management, and PDU connectivity for 5G devices.
· As a 5G management solution, it offers FCAPS capabilities for Core/Base Station (gNB), encompassing Fault, Configuration, Accounting, Performance, and Security management functions.

RAN (DU/RRH)

· As a 5G SA RAN solution, it provides wireless interfaces to 5G devices, manages wireless connectivity (including wireless bearer control, admission control, dynamic wireless resource allocation), and performs security functions (encryption/integrity) for the wireless interfaces.
· Support for Local 5G bands/spectrum for specialized 5G network services.
· n79(4600-4900MHz), n257(26500–29500MHz)

· It complies with 3GPP standards to realize the technological ideals pursued by 5G from an end-to-end perspective.
· It is provided end-to-end to enable enterprise customers to rapidly adopt dedicated 5G networks.
· n257 can be incrementally deployed according to the maturity of the UE ecosystem.

Private 5G Solution(2/2) - Nokia

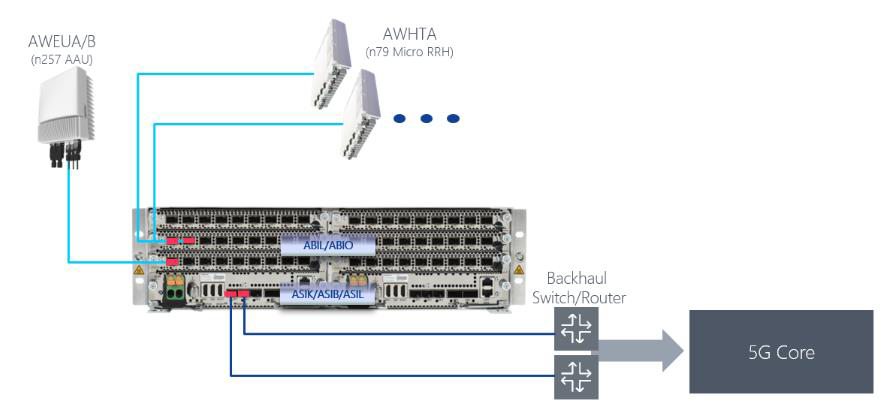

· It is possible to configure n79 and n257 on the same DU simultaneously, or separate DUs can be configured for each frequency band (n79, n257).
· The Common Unit and Capacity Unit of the DU can be selectively configured based on the required capacity/technology considerations.

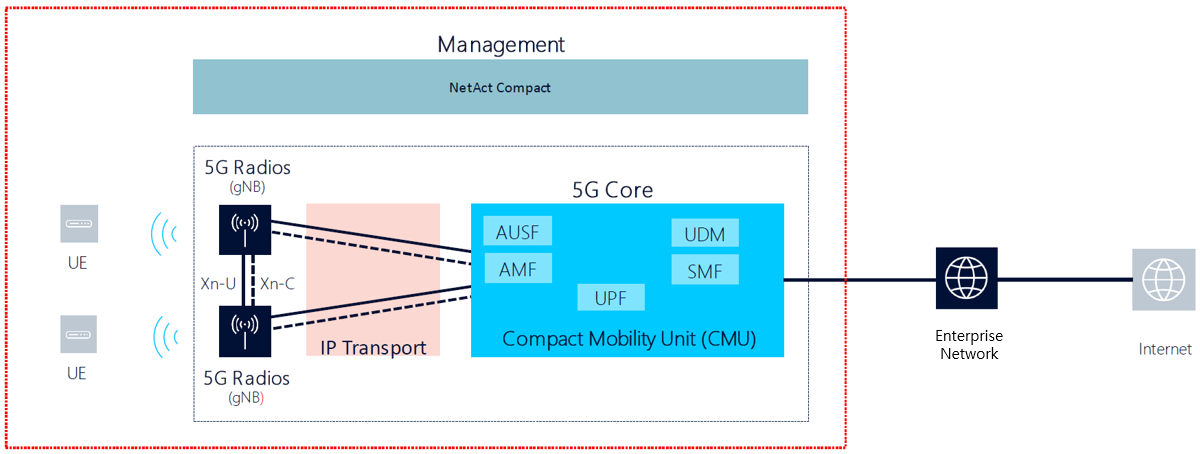

Nokia MPW (Modular Private Wireless) Solution

Private network solution for Enterprise

Private 5G use case

OMRON 5G Industry 4.0 Trial

Lufthansa Technik

Volkswagen Automobile Factory

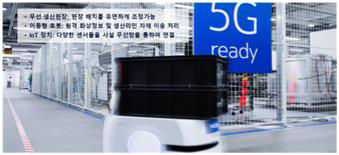

Nokia Oulu factory

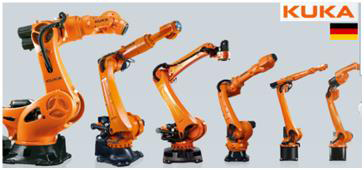

KUKA Industrial robot manufacturing and test site

Arcelik laundry machine factory(AGV)
