Moseley 155M MW

Point

• 4xASI ( or 310M combo possible) + 2 x E1 (16E1:Option) + 4x GbE + Serial
• UHD changeover of signal: 0 ms ( Hitless Switching )

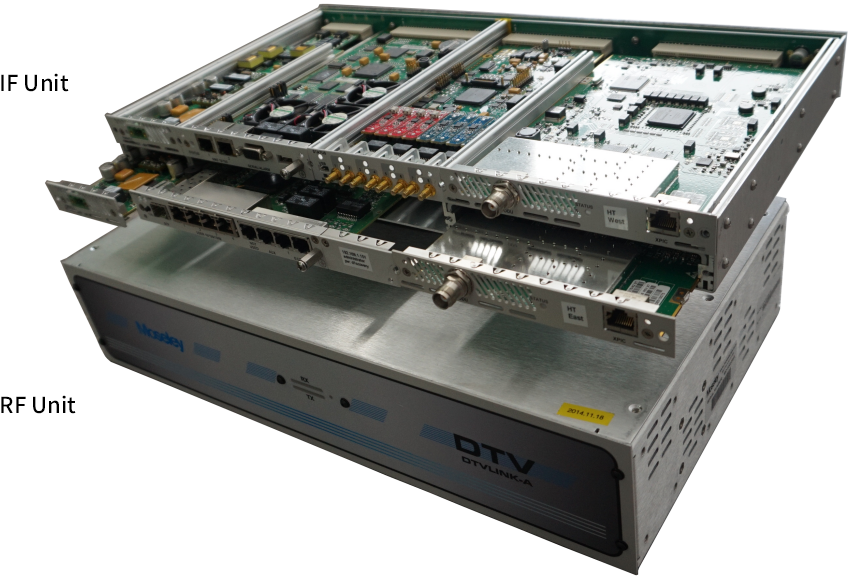

• Stable operation by heat emission structure by separating RF Unit and IF Unit
• Remote Control: Frequency, Output, Automatic/Manual Changeover
• Monitoring : Alarm recording, SNR / RF Power / QAM constellation/TEMP
• ERROR-Free(supporting FEC): Reed-Solomon, Trellis code

Technique

• Reed-Solomon code(supporting FEC) can be compatible with all kinds of Encorder and Decorder.
• Adaptive equalization technology is supported to compensate for multipathing losses. Reed-Solomon and Trellis code support error-free of signal emission with restore all errors that occur during transmission.
• 4 Gigabit ports with L2 switch integration for Gigabit ports, changeover time(0m/s) by Hitless Switch.
• 8 ASI ports, Adjust to user selection 4 Input 4 Output or 6 Input 2 Output, SMPTE310M(supporting automatic recognition)
• RF frequency, Output controlled by User. Monitoring(configuration, alarm recording, SNR, RF performance, QAM constellation, TEMP)
• User can change transmission data rates and modulation, supporting ISDB-T or SBTVD, DVB-T2-MI
• 4, 16,32,64,128 QAM, ISDB-T or SBTVD, DVB-T2-MI, Allows users to change data rates and modulation.
• Room / Frequency Diversity, Supporting Hot/Cold Standby
• Unfaded BER : 1x 10 –E12)
