Overview

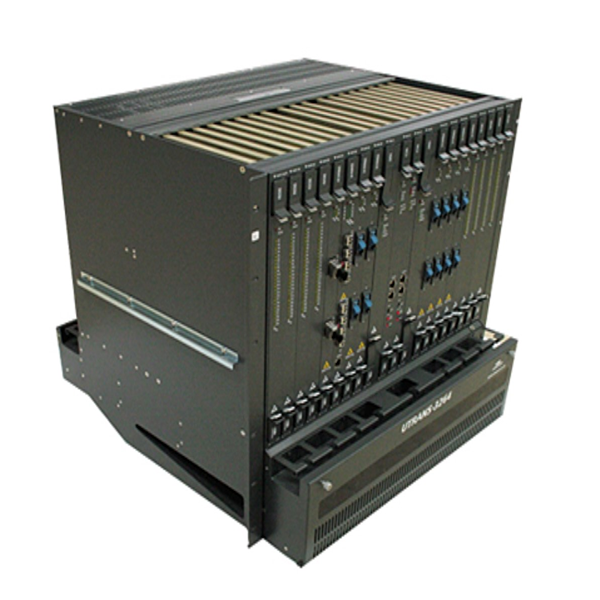

This Equipment is a 10G-based MSPP device that multiplexes/demultiplexes the dependent signal PDH and synchronous optical signal (SDH) to provide optical transmission, branch coupling, and inter-distribution functions (HO:320G, LO20G)and provides Ethernet signal transmission functions.
In addition, 8CH(tunable) MUX/DEMUX usiong WDM tecknology may be transmitted as an 80G signal.
UTRANS-3264 has a switching capacity of 320G. It provides an SDH signal interface for STM1/4/16/64 and a PDH signal interface for E1/T1, DS3 and GbE/FE interface.
It provides biggest capacity among MSPP products. The slot design is ‘Any Card in Any Slot’.
System Features
- TM/HUB/Ring(UPSR, BLSR) topologies supported
- International Standardized Ethernet over SDH (EoS) Technology Satisfaction (GFP/VCAT/LCAS)
- MSPP based on NG-SDH
- Switching capacity : H/O 320G, L/O 20G
- WDM function(8ch) applied
- Support L2 SW functions
- Support WDM module(1 core)
- Provide Database for operational information such as PM and Alarm that can be saved and printed out
- Support remote S/W upgrade
- Local/Remote Loopback
- Provide LAN, RS-232 for EMS connection and interface for NMS connection
Main Specifications
| Switching Capacity | H/Q(AU3/AU4) 320gbit/s, L/O (TU11/12/3) 20Gbit/2 | ||
|---|---|---|---|
| Clock | EXT(E1:2EA), Line-timing, Holdover, Free-run, Derived (2EA) | ||
| Channel Capacity | Signal | Port / Unit | Port / System |
| STM-64 | 1/2 | 32 | |
| STM-16 | 1/2/4/8 | 96 | |
| STM-4 | 1/2/4/8/16 | 192 | |
| STM-1 | 4/8/16/32 | 384 | |
| DS3 | 23 | 240 | |
| DS1/DS1E | 21/63 | 126/378 | |
| 10/100M Base-TX | 8/23 | 276 | |
| 100M Base-FX | 8/16/24 | 288 | |
| Gigabit Ethernet | 1/2/8 | 96 | |

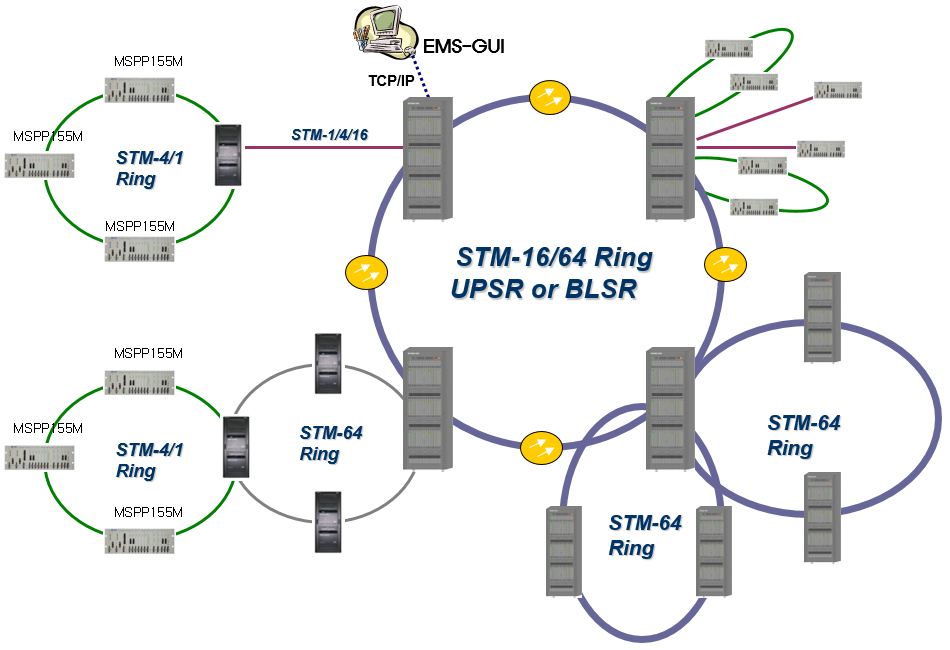

Application(1)

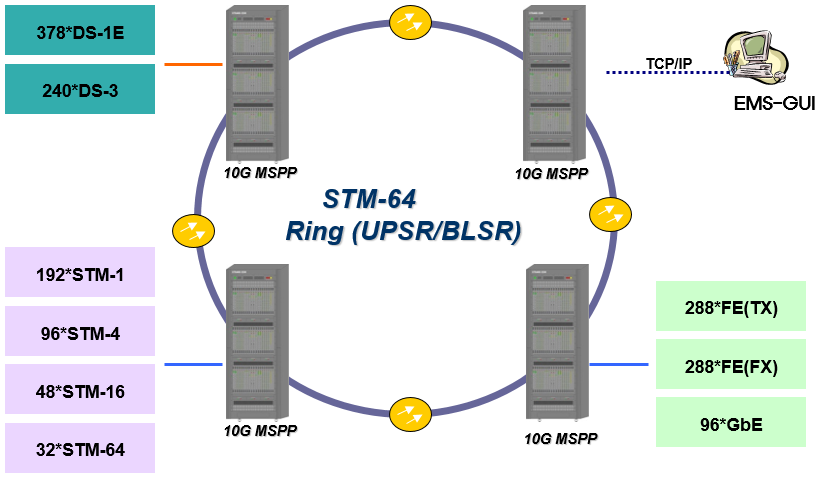

Application(2)
