System overview

It uses TWAMP send and receive packets, the international standard for Ethernet networks, to analyze quality data such as network delays, jitter, and signal loss, and provides functions such as statistics / reports / graphs / map display, overall. A system that manages network quality in real time
[ TWAMP : Two-Way Active Measurement Protocol, RFC-5357 ]

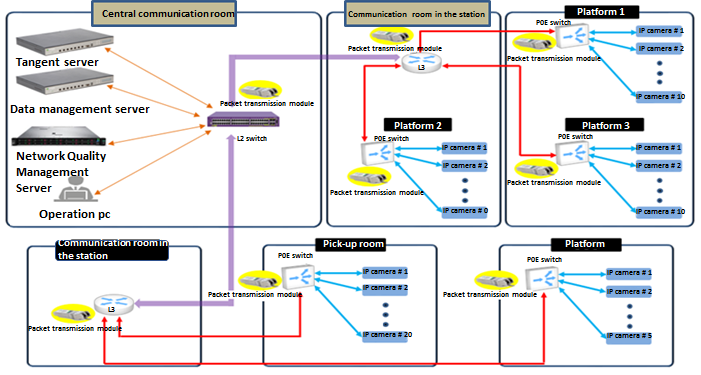

System Configuration

Main Management Items

• Network Bandwidth
• IPDV/Jitter
• PDV Information
• Packet Los
• Packet Delay
• Packet Decoding

System Components

Management Server

Management Server Main Functions

• Regular Collection and Analysis of performance information
• Providing SLA-based analytical information, etc.

Data Server

Data Server Main Functions

• Results data statistics and reports provided (500SLA)
• 10,000 TWAMP session management lights at the same time

Concentration Server

Concentration Server Main Functions

• Generation and transmission of TWAMP test packets
• Offering 500 TWAMP sessions at the same time, etc.

Packet Forwarding Module

Packet Forwarding Module Main Functions

• TWAMP Reflector function provided
• Inline or offline mode features, etc.

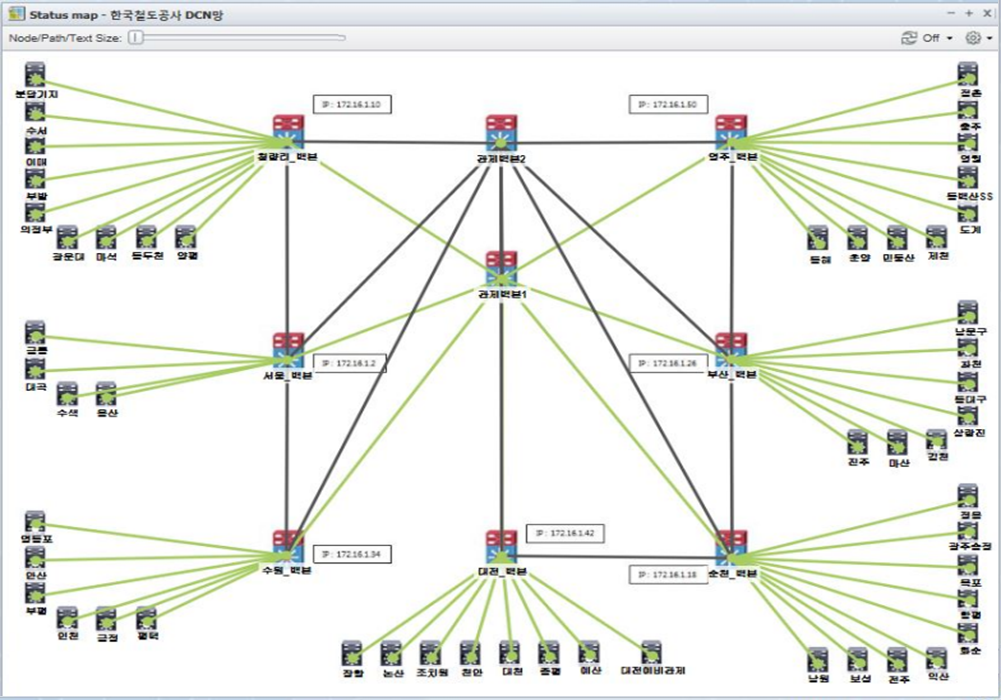

System Operation Screen
