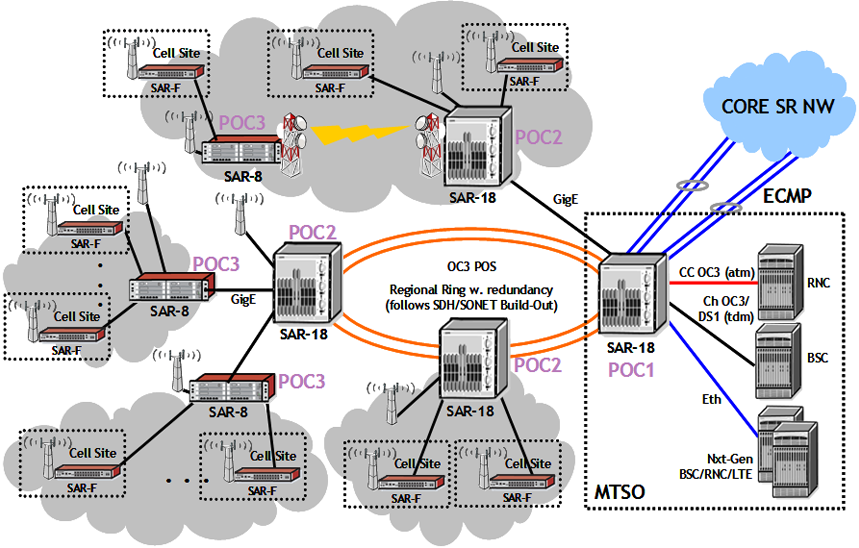

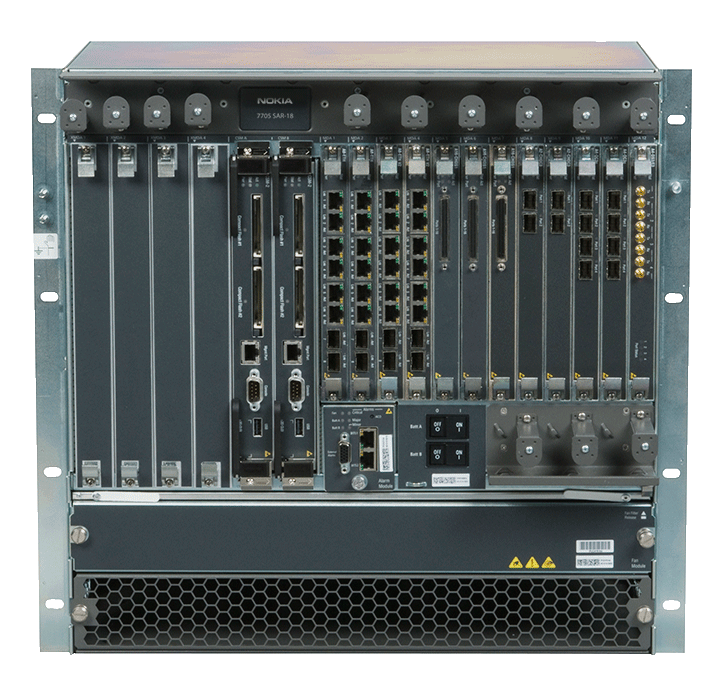

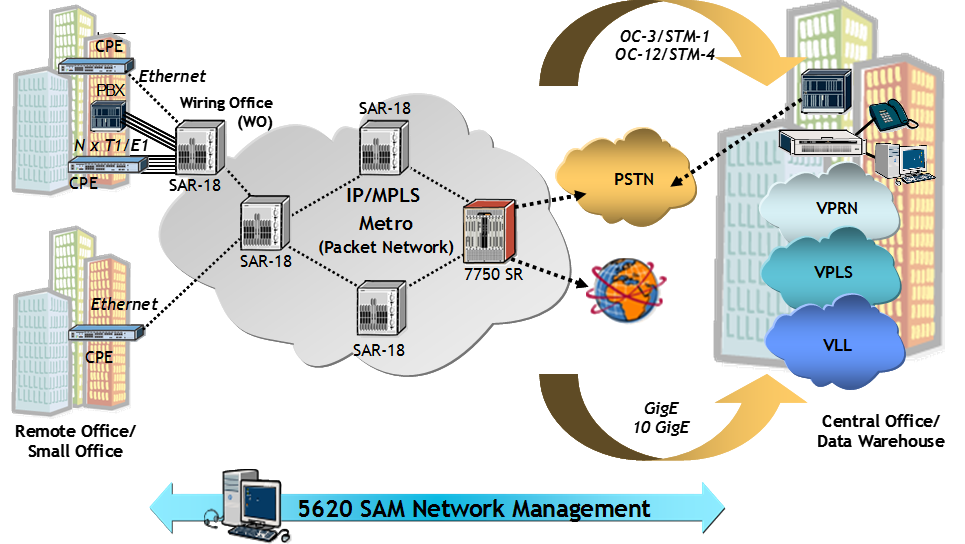

7705 SAR-18

Ethernet, VPLS,IP and IP VPN, TDM,ATM, Serial data,E&M, Frame Relay, HDLC Support

Height : 10RU, 44.5cm(17.5”), Depth : 30cm(11.8”), Width : 43.9cm(17.3”), 19”Rack mount
Power : Two Feeds : -48V DC/ -60V DC
Cooling : One tray of 8 fans with redundancy
equipment redundancy : Control, switch fabric, power feeds, Cooling fans
System throughput : 140Gbps(Half Duplex)
Adapter Card / Slot : 12 x 2.5Gbps(Full Duplex) MDA slots / 4 x 10Gbps(Full Duplex) XMDA slots
Timing : ITU-T SyncE, IEEE 1588v2, IETF RFC5905
Feature : Legacy TDM Migration, Network Protocol, L2-L3 MPLS, QoS, IPSec, IPv6, Load balancing etc.

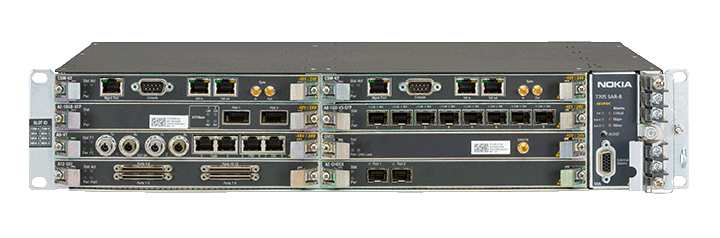

7705 SAR-8

Ethernet, VPLS,IP and IP VPN, TDM,ATM, Serial data,E&M, Frame Relay, HDLC Support

2RU, 8.9cm(3.5”), Depth : 26.4cm(10.4”), Width : 44.5cm(17.5”)19”Rack mount
Power : Two Feeds : -48V DC/ -60V DC or +24V DC
Cooling : One tray of 8 fans with redundancy
equipment redundancy : Control, switch fabric, power feeds, Cooling fans
System throughput : 60Gbps(Half Duplex)
Adapter Card / Slot : 2 x 10Gbps(FD) MDA slots / 4 x 2.5Gbps(FD) MDA slots
Timing : ITU-T SyncE, IEEE 1588v2, IETF RFC 5905 NTP
Feature : Legacy TDM Migration, Network Protocol, L2-L3 MPLS, QoS, IPSec, IPv6, Load balancing etc.

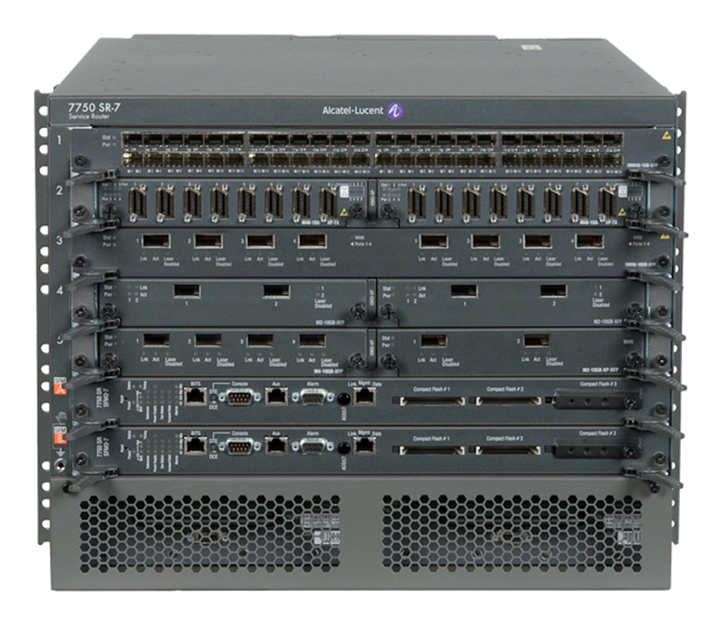

7750 SR7

Item	7750 SR-7
H/W Spec	35.6 x 44.5 x 64.8 cm (8RU) Empty : 34 Kg, Loaded : 70kg
System Capacity	4Tbps (Redundant) 400Gbps for slot (Redundant)
Service Interface	100G Interface : 60 port (MAX) 40G Interface : 60 port (MAX) 10G Interface : 600 port (MAX) 1G Interface : 400 port (MAX) SDH, ATM, POS Interface Support
Equipment Redundancy	Control, Switching Power, Fan
Service	Carrier Ethernet (MEF2.0 Certifications) L2VPN, L3VPN, MPLS VPN Extensive fault, performance monitoring(OAM)
Management	Serial Interface (Direct connection) Telnet / SSH(v1,v2) support SNMP(v1,v2,v3) support OF, Netconf and Yang Support

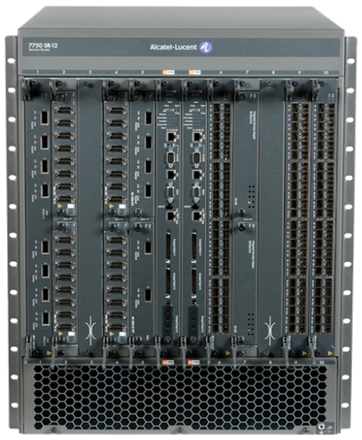

7750 SAR-12

Item	7750 SR-12
H/W Spec	62.3 x 44.5 x 64.6 cm (14RU) Empty : 56.4 Kg, Loaded : 155.7kg
System Capacity	8Tbps (Redundant) 400Gbps for slot (Redundant)
Service Interface	100G Interface : 120 port (MAX) 40G Interface : 120 port (MAX) 10G Interface : 1200 port (MAX) 1G Interface : 800 port (MAX) SDH, ATM, POS Interface Support
Equipment Redundancy	Control, Switching Power, Fan
Service	Carrier Ethernet (MEF2.0 Certifications) L2VPN, L3VPN, MPLS VPN Extensive fault, performance monitoring(OAM)
Management	Serial Interface (Direct connection) Telnet / SSH(v1,v2) support SNMP(v1,v2,v3) support OF, Netconf and Yang Support
