Summary

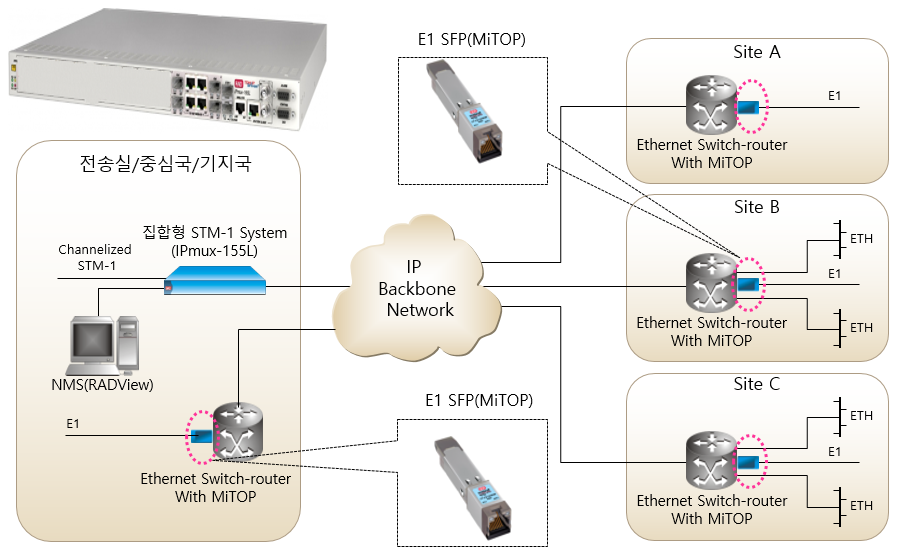

This equipment transmits E1 signal through IP packet network (including MPLS). As a system that reliably transmits TDM signals in IP packet networks, TDMoverIP based technology is the main It is a function to perform SFP transceiver type MiTOP SFP and aggregate STM-1 System type IPMUX-155L (Channelized STM-1) equipment converts E1 signal into UDP/IP, MPLS, and MEF packets by applying TDM over Pseudowire technology

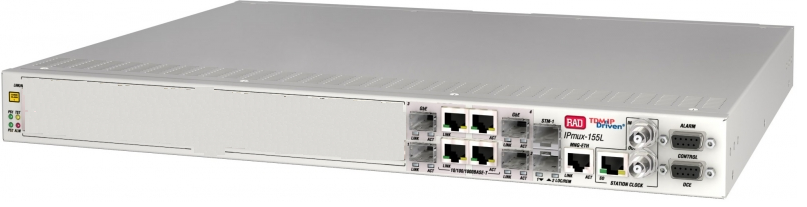

System Features(IPMUX-155L)

• Multi-Standard PW Support : SAToP, CESoPSN, TDMoIP
• AU4 Frame structure support in MSP(1+1) Channelized STM-1
• 4GbE (UTP/SFP Combo) Network Port supports LAG function
• Perfect compatibility with E1 SFP (MiTOP) (manageable by integrated NMS)

System Features(E1 SFP)

• SFP-based TDM Pseudowire providing TDM circuit emulation with Packet Switched Network (PSN)
• CESoPSN (RFC 5086) and SAToP (IETF RFC 4553) payload encapsulation
• Converts framed or non-framed E1 links to Fast Ethernet (UDP/IP, MPLS or MEF format)
• PDV (Jitter) buffer setting is supported up to 256ms
• ASIC-based architecture minimizes processing delay
• Adopting RAD's advanced clock distribution mechanism

Characteristic

• Multi-Standard PW Support : SAToP, CESoPSN, TDMoIP
• 802.3ad LAG(1+1), Dual homing function provided
• Supports 3 Network/User Ports
• E1 SFP (MiTOP), full compatibility with IPMUX-155L (Manageable in integrated NMS)
• Operation and maintenance convenience with Channelized STM-1 function
• Reduced cost by miniaturization (1U, 3.6kg Size) and low power (Max 27W)
