• Line：400G/100G/40G/10G/2.5G
• Client：100M-100G Any
• OTN/Packet/VC universal switching
• Supports 36 service slots
  • - Bandwidth for each slot : 400G
  • - 14.4T Switching Matrix
• L2 function support
• MPLS-TP Support
• Multi-layer protection switching support

• Line：400G/100G/40G/10G/2.5G
• Client：100M-100G Any
• OTN/Packet/VC VC universal switching
• Supports 11 service slots
  • - Bandwidth for each slot : 400G
  • - 4.4T Switching Matrix
• L2 function support
• MPLS-TP Support
• Multi-layer protection switching support

• 15 board slots per shelf
• 1T cell cross-connect capacity provision
• Client board & Line board mountin
• Transponder board & Muxponder board mount
• WDM board mount
• Node and self-control
• Control unit, time and clock synchronization, cell switching
• 1+1 main reserve
• Detachable 1+1 main spare board
• -48V/-60V DC power supply

• ROADM 2~20 Degree support
• 28 service slots available
• Can be used integrated with S1/S2/S3
• 10G/100G/200G Transponder card provided
• FOADM, RODM, Colorless, Direction less, Contention less, Flex grid feature support
• Card and function support for Optical Surveillance Function (OTDR)
• rovides RAMAN amplifiers for long-distance transmission

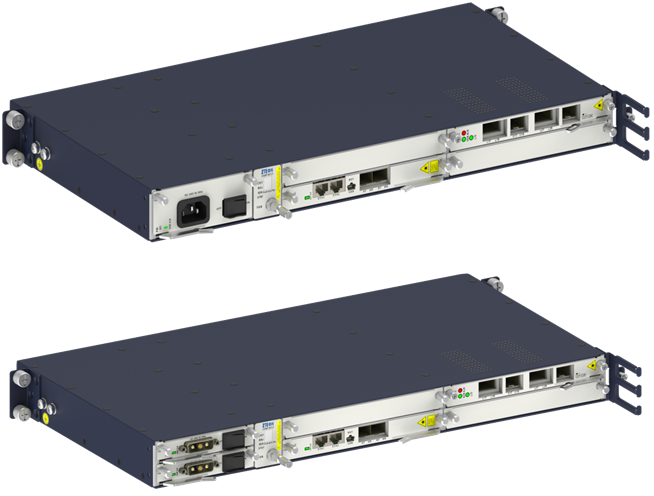

• 1U Size (Compact)
• AC shelf, 3 service slot
• DC shelf, 3 service slot
• FOADM feature support
• Offers a variety of transponder cards
  • - Line : 10G, 100G
  • - Subscriber Services : 100M~100G

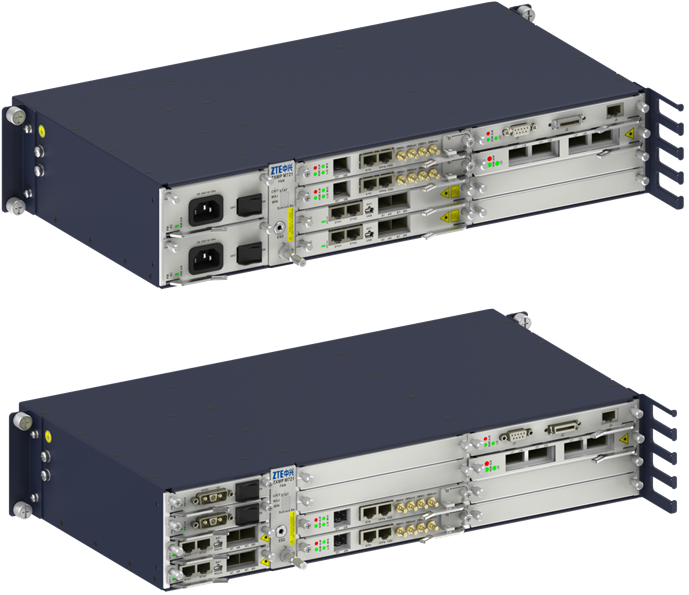

• 2U Size (Compact)
• AC shelf, 6 service slot
• DC shelf, 6 service slot
• FOADM feature support
• Offers a variety of transponder cards
  • - Line : 10G, 100G
  • - Subscriber Services : 100M~100G

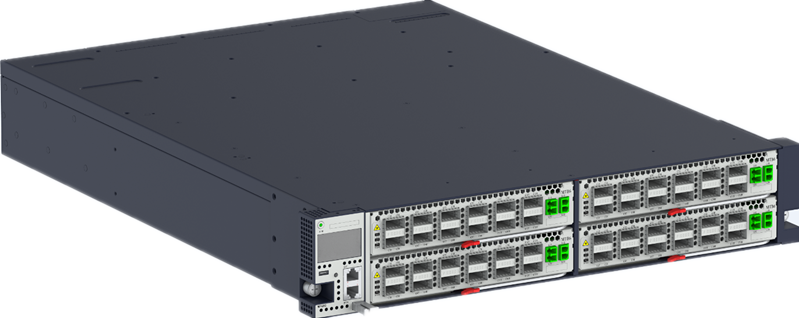

Characteristic

• Large capacity
  • - 100G, 200G, 600G line service provided
  • - 10G, 100G, 400G(Future) subscriber service
• low power consumption
  • - maximum power consumption 1130W
  • - 0.24W/1G

H/W specification

• 440mm(W) × 88mm(H, 2U) × 600mm(D)
• 19“, ≥800mm Facility in Depth Cabinet
• External environment
  • - operating temperature : 0℃～40℃
  • - relative humidity : 5%~95%
• Power configuration
  • - 240V/336V HVDC power support
  • - 110V/220V AC power support

Service support

• Line service
  • - 100G, 200G, 400G, 600G
• Client service
  • - Provides up to 80 10G
  • - Provides up to 48 100G
