Moseley Portable MW

Point

• 4xASI ( or 310M combo possible) + 2 x E1 (16E1:Option) + 4x GbE + Serial
• Same configuration as the STL / TSL, IDU is compatible device to device

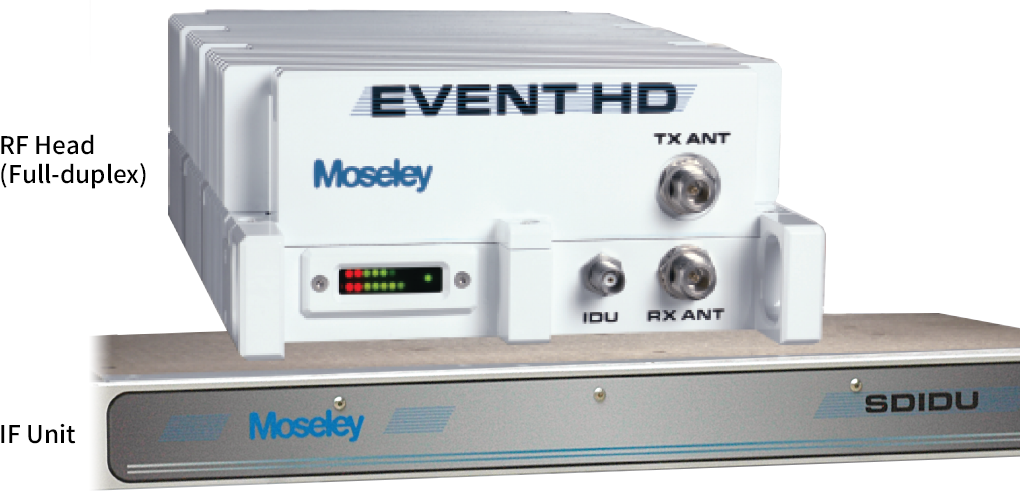

• COFDM RF Head & IF separation structure, Full-duplex Upgrade
• Portable / Tripod Mountable Outdoor Unit and 2 x Diversity receive
• Monitoring : Alarm recording, SNR / RF Power / QAM constellation/TEMP
• ERROR-Free(supporting FEC): Reed-Solomon, Trellis code

Technique

• Reed-Solomon code(supporting FEC) can be compatible with all kinds of Encorder and Decorder.
• Adaptive equalization technology is supported to compensate for multipathing losses. Reed-Solomon and Trellis code support error-free of signal emission with restore all errors that occur during transmission.
• 4 Gigabit ports with L2 switch integration for Gigabit ports
• Frequency change 500KHz, Threshold level -84dBm(16QAM).
• 8 ASI ports, Adjust to user selection 4 Input 4 Output or 6 Input 2 Output, SMPTE310M(supporting automatic recognition)
• RF frequency, Output can be changed for Full-duplex, Monitoring(configuration, alarm recording, SNR, RF performance, QAM constellation, TEMP)
• Dual power in the IDU, 48Vdc or 220/110 Vac, Power consumption 80W
• 4, 16,32,64,128 QAM, ISDB-T or SBTVD, DVB-T2-MI, Allows users to change data rates and modulation.
• Room / Frequency Diversity, 2x Supporting of Diversity receive
• Unfaded BER : 1x 10 –E10)
