UTRANS-7200
UTRANS-7200
System Features
- Carrier Ethernet devices with MPLS-TP technology
- Provides hardware redundancy for common parts of the system
- Provides interfaces for FE, GE, 10GE, STM-1 CES, E1 CES
- Provides failover capability within 50 ms for end-to-end services
- Deliver differentiated QoS policies by providing granular service classification
- Ethernet/MPLS-TP OAM tool provides fault/failure location/performance monitoring
Specification
Shelf
- Dimension: 23” x 14RU x 475mm
Switching
- 480G, 40G per slot
H/W Redundancy
- Power, FAN, Control, Switching, Clock
Clock
- External, Loop(Sync-E), Internal, Holdover, Derived
Topology
- Ring, Linear, Mesh
Service
- 12K E-line, 4K E-lan, 4K E-tree
MPLS-TP
- G.8131 Linear, G.8132 Ring, G.8113.1 OAM
QoS
- Classification: Port, VID, 802.1p, EXP, Label, 5-tuple
- Queuing/Scheduling: 8 priority Qs, SP + WFQ
- Metering/Marking: TrTCM
- Rate Limit: Egress Shaping, Ingress Policing
- Tunneling Model: Pipe
- Congestion Avoidance: WRED, RED
- H-QoS: PW, LSP, Port
Circuit Emulation
- SAToP, CESoP, CEP, ACR/DCR
L2
- 802.1Q VLAN, 802.1ad QiQ, 802.1p COS, 802.3ad LACP, 802.1d STP, 802.1s MSTP, Jumbo, Storm Control, Miroring, Port Shutdown, Traffic Monitoring, Auto-nego Mismatch, Loopback, LLCF, Remote Reset, Self-loop Filtering, Y.1731 OAM
Management
- EMS, CLI, SSH/Telnet, SNMPv2
UTRANS-7300
UTRANS-7300
System Features
- Carrier Ethernet devices with MPLS-TP technology
- Provides hardware redundancy for common parts of the system
- Provides interfaces for FE, GE, 10GE, STM-1 CES, E1 CES
- Provides failover capability within 50 ms for end-to-end services
- Deliver differentiated QoS policies by providing granular service classification
- Ethernet/MPLS-TP OAM tool provides fault/failure location/performance monitoring
Specification
Shelf
- Dimension: 19” x 6RU x 400mm
Switching
- 160G
H/W Redundancy
- Power, FAN, Control, Switching, Clock
Clock
- External, Loop(Sync-E), Internal, Holdover, Derived
Topology
- Ring, Linear, Mesh
Service
- 1K E-line, 1K E-lan, 1K E-tree
MPLS-TP
- G.8131 Linear, G.8132 Ring, G.8113.1 OAM
QoS
- Classification: Port, VID, 802.1p, EXP, Label, 5-tuple
- Queuing/Scheduling : 8 priority Qs, SP + WFQ
- Metering/Marking : TrTCM
- Rate Limit : Egress Shaping, Ingress Policing
- Tunneling Model : Pipe
- Congestion Avoidance : WRED, RED
- H-QoS: PW, LSP, Port
Circuit Emulation
- SAToP, CESoP, CEP, ACR/DCR
L2
- 802.1Q VLAN, 802.1ad QiQ, 802.1p COS, 802.3ad LACP, 802.1d STP, 802.1s MSTP, Jumbo, Storm Control, Miroring, Port Shutdown, Traffic Monitoring, Auto-nego Mismatch, Loopback, LLCF, Remote Reset, Self-loop Filtering, Y.1731 OAM
Management
- EMS, CLI, SSH/Telnet, SNMPv2
UTRANS-7310
UTRANS-7310
System Features
- Carrier Ethernet devices with MPLS-TP technology
- Provides hardware redundancy for common parts of the system
- Provides interfaces for FE, GE, 10GE, STM-1 CES, E1 CES
- Provides failover capability within 50 ms for end-to-end services
- Deliver differentiated QoS policies by providing granular service classification
- Ethernet/MPLS-TP OAM tool provides fault/failure location/performance monitoring
Specification
Shelf
- Dimension: 19” x 5RU x 395mm
Switching
- 100G
H/W Redundancy
- Power, FAN, Control, Switching, Clock
Clock
- External, Loop(Sync-E), Internal, Holdover, Derived
Topology
- Ring, Linear, Mesh
Service
- 1K E-line, 1K E-lan, 1K E-tree
MPLS-TP
- G.8131 Linear, G.8132 Ring, G.8113.1 OAM
QoS
- Classification: Port, VID, 802.1p, EXP, Label, 5-tuple
- Queuing/Scheduling : 8 priority Qs, SP + WFQ
- Metering/Marking : TrTCM
- Rate Limit : Egress Shaping, Ingress Policing
- Tunneling Model : Pipe
- Congestion Avoidance : WRED, RED
- H-QoS: PW, LSP, Port
Circuit Emulation
- SAToP, CESoP, CEP, ACR/DCR
L2
- 802.1Q VLAN, 802.1ad QiQ, 802.1p COS, 802.3ad LACP, 802.1d STP, 802.1s MSTP, Jumbo, Storm Control, Miroring, Port Shutdown, Traffic Monitoring, Auto-nego Mismatch, Loopback, LLCF, Remote Reset, Self-loop Filtering, Y.1731 OAM
Management
- EMS, CLI, SSH/Telnet, SNMPv2

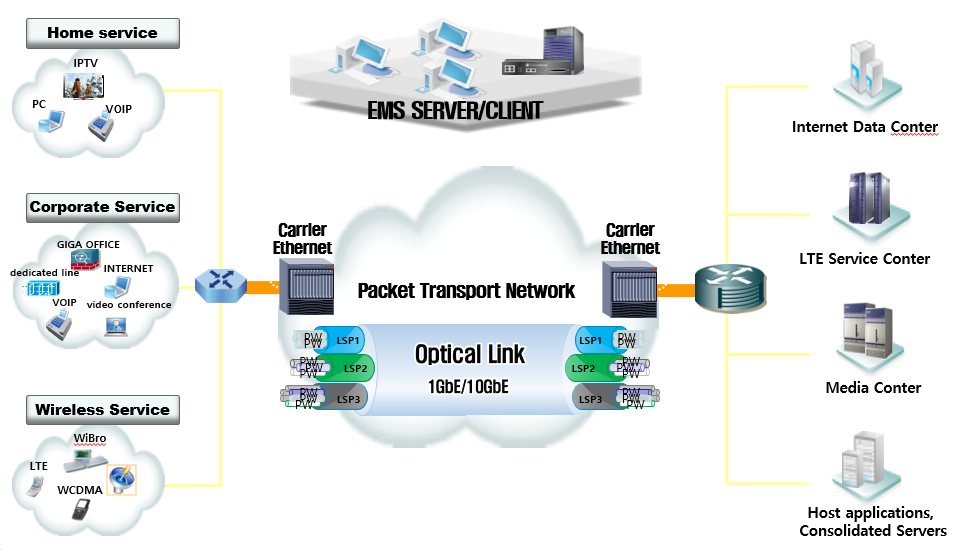

Diagram
