PRODUCTS
Wired transmission
Industrial L2 Switch / Optical Module
Switch_L2_1G

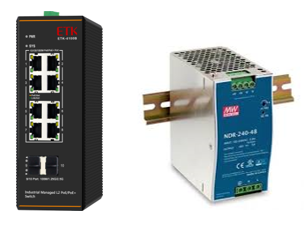

Iㅕdustrial switch - ETK-4100B-P820M
System Features
- 8 ports or more RJ-45 10/100/1000 Base-T, PoE/PoE+ support
- 2 Port 100M/1.25G/2.5G Base-X(SFP) support
- ERPS Ring Protocol support
- STP(IEEE 802.1D) / RSTP(IEEE 802.1W) / MSTP(IEEE 802.1Q)
- GVRP / IGMPv2, IGMPv3 Snooping / MLD Snooping support
- DC power supply (NDR-240-48) provided separately
Switch_L2_10G
Industrial switch - ETK-4100B-P820M
System Features
- Operating environment temperature: - 40°C ~ 80°C
- 10/100/1000 UTP 8Port PoE/PoE+(IEEE 802.3af, IEEE 802.3at) support
- SFP 4Port 100M/1G/2.5G/10G support
- Din Rail or Wall Mount Installation support
- 1Core bypass port installed as standard
- Electromagnetic compatibility certification and low-temperature, high-temperature, high-humidity environment tests completed (EMI, ETRI verification completed)
- Stable power supply with DC 48V power redundancy

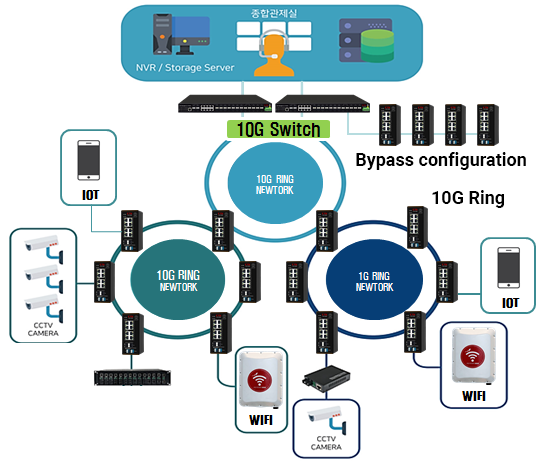

Various network configurations
