Signal Strength Telemetry System for Train Radio Signals.

Application equipment

Signal Strength Telemetry System for Train Radio Signals.

System Overview

A system that automatically measures the electric field strength of VHF/FM/DMB signals through remote control of the central control system, transmits the measured data to the central control system using a wireless network, and stores, analyzes, and monitors data

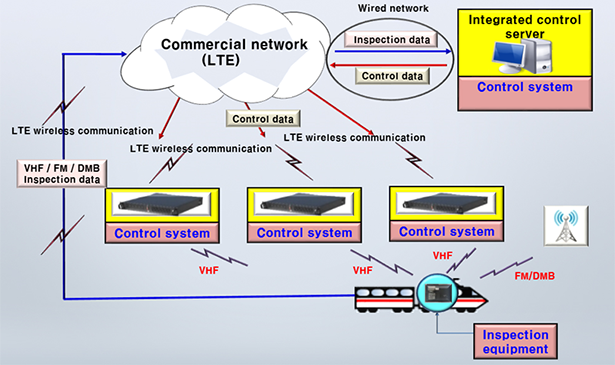

System Configuration Diagram

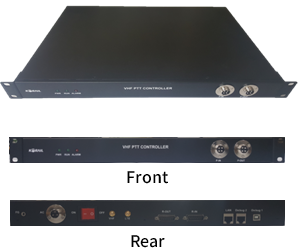

Base Station Controller

Features

Wireless Communication Function with Central Integrated Control System
Signal Strength Monitoring Function at Base Station[usually Train Station]
VHF Radiation On/Off Control Function
Detection and Transmission of Signal Strength Level
Voice Signal Level Detection Function
Rack mountable

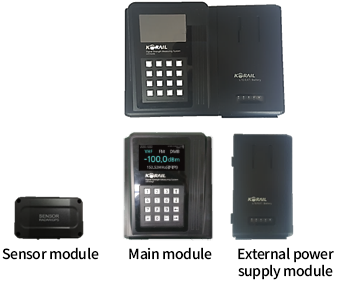

Main Module

Features

VHF/FM/DMB Electric Field Strength Measurement and LCD Display Function
Integrated Control System and Transmission/Reception Functions
Periodic Field Strength Measurement Function
Location/Measurement Data Transfer Capability
Audio Signal Level Detection Function
Built-in Battery
Removable External Power Supply Module

Features of Sensor Module

GPS Reception Function
RADAR : Speed Measurement Capability

Central Control System

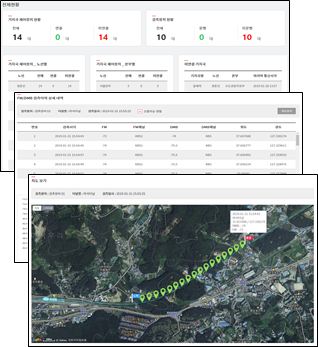

Monotoring Server Screen

Features

Processing of Data Transmitted from Detection Device[Module]
Save/Inquiry/Terminal Authentication
Real-Time Monitoring
Location Map/Status Information Monitoring
Remote Control Management and Authentication Information Management
Manegement Data-Base : Operators/Detection Devices/Disability Histories/Statistics

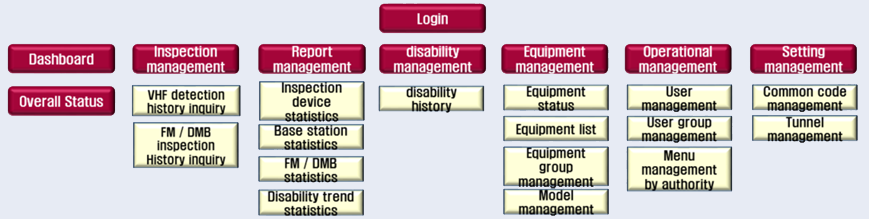

Menu Configuration

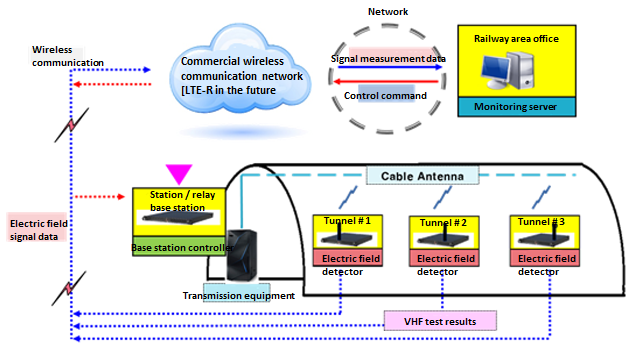

Application in tunnel
