Wireless LAN is a wireless bridge device that acts as a wireless LAN base station, when establishing a network, wireless LAN builds a network through wireless connection using radio resources without using wires. Wireless LAN products use the internationally accepted ISM band 5.725 to 5.825ghz (802.11a).

Feature

• Maximum 100Mbps
• ISM band 5.725 ~ 5.825GHz(802.11a)
• Modulation OFDM – BPSK, QPSK, 16QAM, 64QAM
• Interface : 10/100Mbps, T/E1x16(Max) , SFP Fx
• FCC,CE,ITU-T,IEEE
• Excellent quality of line
• AES 128
• MIMO
• Layer 2 Isolation for preventing snooping on WLAN
• QoS, 802.1p, 802.1q
• Web-based management and remote control
• Remote firmware upgrade
• IDU Input Power 1+1

Outdoor type DU

• Size : 27.0cm(H) X 18.0cm(W) X 5.5cm(D)
• Weight : 1.5Kg

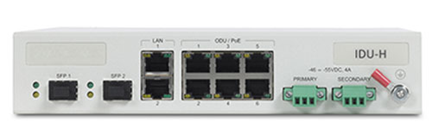

Indoor type DU

• Size : 4.4cm(H) X 19”(W) X 25.0cm(D)
• Weight : 1.1Kg
