Intelligent Station Integration Device

System Overview

A large number of facilities such as wide-area radio broadcasting, intercoms, telephones, AFC images, and emergency gate control that are in operation in Station Offices of wide-area trains are integrated and managed in one equipment, and managed through a dedicated LTE terminal when staffs are absent. A system that integrates / manages the work of station office

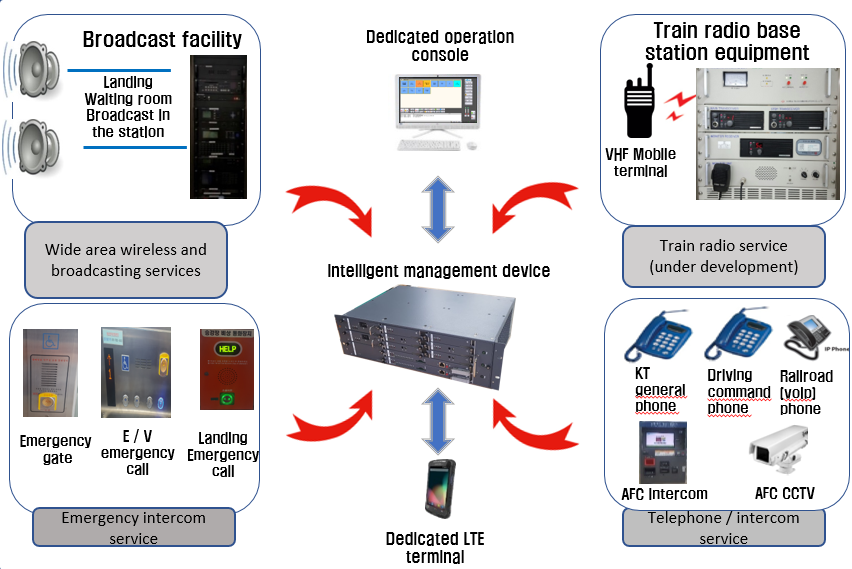

System Configuration

Main Functions

Functions	Contents	Note
Broadcast	Wide area radio and broadcasting
Phone	Public telephone, Rail-only telephone, Rail-Control telephone	Providing integrated and connection functions such as intercom
Intercom	Toilet, disabled, emergency intercom	Provided by dedicated Console and LTE terminal when absent
Duplication	Support for various service redundancy functions	Optional

System components

Dedicated LTE terminal

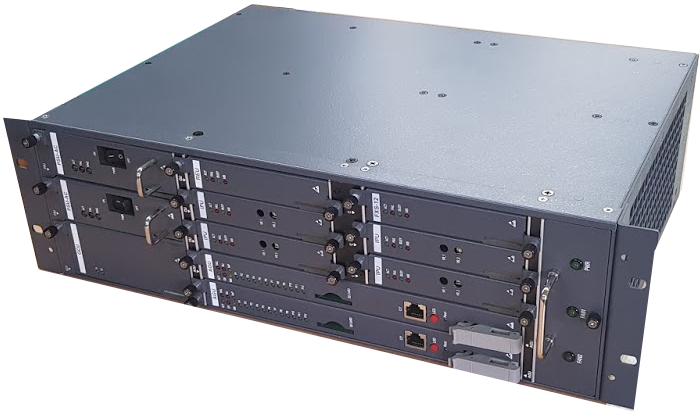

Intelligent service integration device

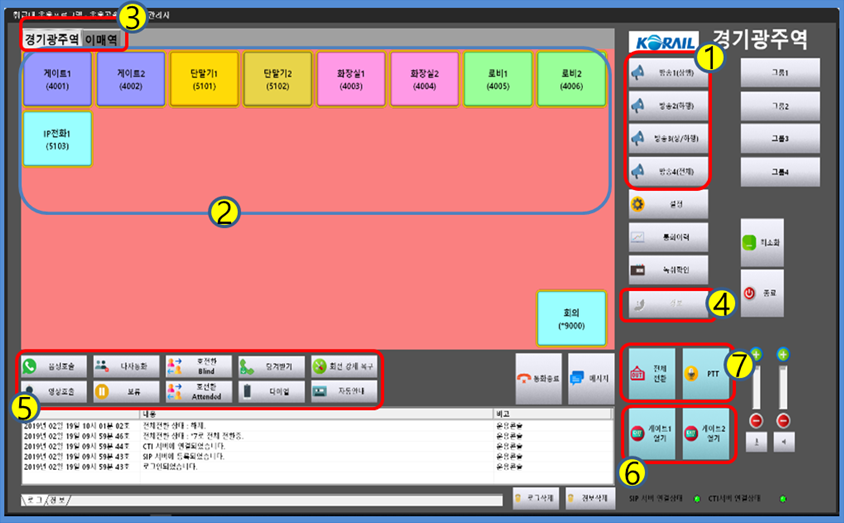

Operation Console

Number	Specification	Function
①	Broadcast channel	Up-Line, Down-Line, Reception room, All areas of the station
②	On-site intercom	Emergency gate, E / V, Platform Emergency Call, AFC intercom Call
③	Display of remotely managed stations	Remote Intercom Registration and Call Connection Function
④	Warning issuance	Display alarms for servers and Intelligent Management Devices (lights up when alarms occur)
⑤	Video and Voice calls	Video and Voice Call Function
⑥	Emergency Gate Control	Emergency Gate ON / OFF Function
⑦	Full Transition	Switch full service to a dedicated LTE terminal when the staffs are absent
