System Overview

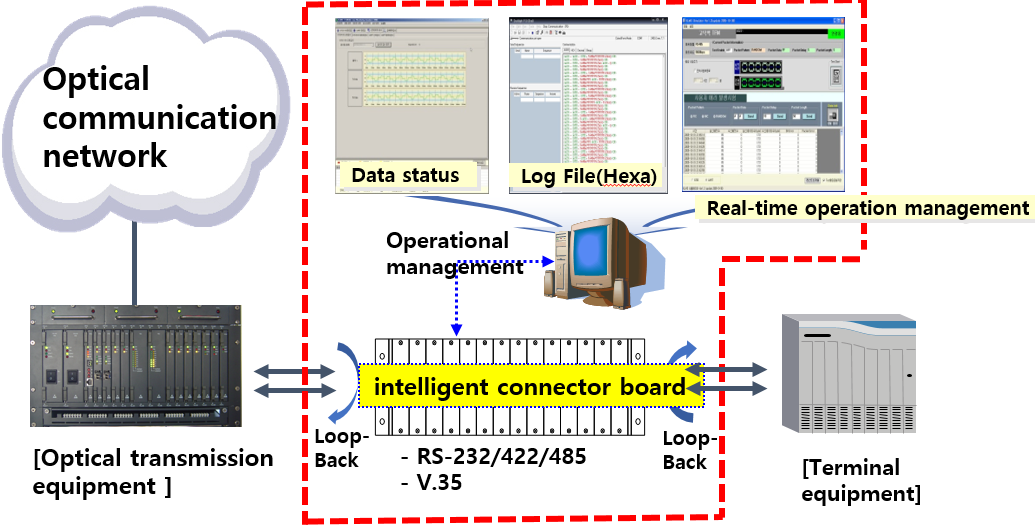

When the data signal is linked between the subscriber data channel and the terminal (signal) equipment, which is applied to the signal equipment line operation of the high-speed railway (KTX) and general railway, the normal operation of the line is monitored in real time. A system that can generate an alarm and take prompt action by the administrator in the event of a line failure.

System Configuration

Main Features

• Data Line Connection and Monitoring Function for each channel
• Management Function for unit equipment and equipment operation by group
• Data Line Test and Maintenance Function for each channel

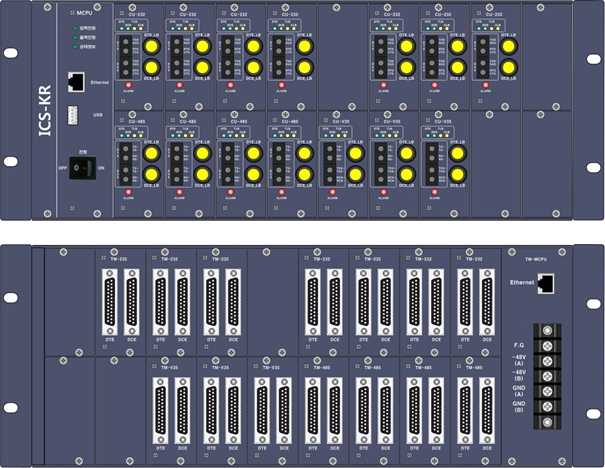

• Subrack structure for easy installation and operation management
• Selective installation of surge protection module for each channel

Main Features

Intelligent Connect Panel

• Signal Line Connection for each channel regardless of the power status of the connector panel
• Real-time Monitoring Function of signal data for each channel (RS-232 / RS-422 / RS-485 / V.35 signal monitoring channel)
• Save Function including time information of signal data for each channel
• Administrator Access and Remote Management Capabilities
• Daily automatic / manual backup and report output function
• Provides loopback and test ports for single point of failure
• Apply compatible common slots for channel boards in a rack-mounted form

System Specifications
