622M MSPP (BN-622M)
622M MSPP (BN-622M)
Overview

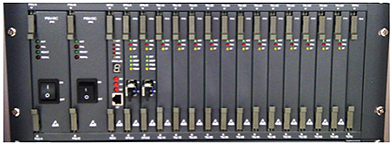

BN-622M system is a 622M class-based MSPP device that can multiplex/demultiplex PDH and synchronous optical signals to provide optical transmission, branch coupling, and inter-distribution functions, as well as Ethernet signal transmission.
With 622Mbps transmission based, BN-622M supports TDM (DS1(1.544Mbps), DS1E(2.048Mbps), DS3(44.736Mbps), DS0(64Kbps) for voice, data and ethernet service in single platform.
System Feature
- Support for various network topologies (TM/UPSR)
- International Standardized EOS (ETHRNET OVER SDH) Technical Satisfaction (GFP/VCAT/LCAS)
- Support STM-1/4, Fast ethernet, DS-3, DS-1E, DS-0 interfaces
- Support L2 switch functions
- Support QoS
- Easy to use with GUI (GRAPHIC USER INTERFACE) function
- Provide Database for operational information such as PM and Alarm that can be saved and printed out
- Support remote S/W upgrade
- Local/Remote Loopback supported
- Support remote maintenance by DCC
Specifications
| Items | Signal | Port / Unit | Port / System |
|---|---|---|---|
| Channel Capacity | STM-4 | 1 | 2 |
| STM-1 | 1 | 6 | |
| DS3 | 3 | 18 | |
| DS1/1E | 21/8/4 | 126/48/24 | |
| 10/100Base TX | 4 | 24 | |
| 100Base FX | 4 | 24 | |
| 2W/4W E&M | 10 | 120 | |
| OCUDP(2.4K ~ 64Kbps) | 10 | 120 | |
| SLC-T/E | 10 | 120 | |
| TD/RD | 10 | 120 | |
| DS64N(N x 64kbit/s) | 2 | 24 | |
| ASIU(RS232.1.200~ | 4 | 48 | |
| 57.600bps) | |||
| Clock | EXT(E1:2EA), Line-timing, Holdover, Free-run, Derived (2EA) | ||
